DuraMac ZQC500
The ZQC500 is a high-performance transfer case designed for heavy-duty wheeled equipment, ideal for engineering and special vehicles operating under extreme conditions. It delivers a maximum input torque of 5000Nm and a maximum input speed of 3500rpm, with a center distance of 310mm between input and output shafts.
This unit features two speed ratios: 0.91 for on-road high-speed travel and 2.08 for off-road low-speed heavy-load operation, with 3-pneumatic shifting for reliable gear changes. It offers front axle output via pneumatic operation with an indication switch, and a torque proportion of 1:1 or 1.2:1 for front/rear axle distribution.
With a pneumatic operating pressure of 6.5–8 bar, a lubricant oil capacity of 4L, and a total weight of 142kg, the ZQC500 ensures efficient power transmission and durability. Optional N200/N400 PTOs or full-power PTOs, plus external lubricant coolers, are available. Input flanges include DIN150, DIN165, T150, and T165 for broad compatibility.
Advantages of ZQC500
High Loading Capacity: With a maximum input torque of 5000Nm and speed of 3500rpm, the ZQC500 delivers exceptional load-bearing performance for heavy-duty operations.
Built-in Lubrication Pump: The integrated lubrication system ensures reliable, continuous lubrication, reducing wear and extending service life.
Inter-axle Differential: Equipped with an inter-axle differential, it optimizes torque distribution, enhancing traction and stability in challenging terrain.
Pneumatic Shifting: The pneumatic shifting system enables smooth, precise gear changes, while the option for an external oil cooler ensures consistent performance under extreme conditions.
Technical Specifications
| Max input torque: | 5000Nm |
| Max input speed: | 3500rpm |

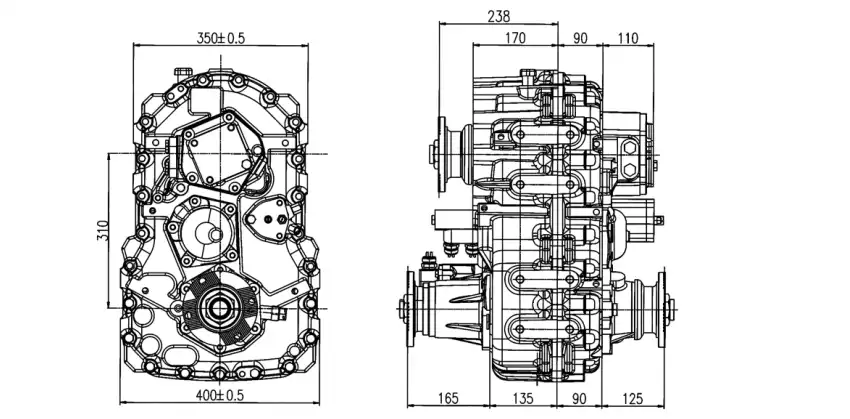

| Center Distance: | 310mm |
| Ratio (On-road/Off-road): | 0.91/2.08 |
| Shifting Operation: | 3-pneumatic |
| Torque Ratio Proportion: | 1:1 or 1.2:1 |
| Air Pressure: | 6.5-8 bar |
| Lubricant Oil: | 4L |
| Total weight: | 142Kg |
| Input Flange: | DIN150, DIN165, T150, T165 |
