DuraMac ZQC600 Wheeled Vehicle Transfer Case
The Wheel Transfer Case ZQC600 is a high-performance core transmission component designed for multi-axle drive wheeled vehicles. It boasts a maximum input torque of 5000 Nm, a maximum input speed of 4300 rpm, and a center distance of 350 mm, making it ideal for heavy-duty applications.
This transfer case features two distinct gear ratios: 0.95 for on-road driving and 2.12 for off-road conditions, with 3-pneumatic shifting for reliable operation. It also supports a torque ratio proportion of 1:1 or 1:2.21, with front axle output controlled by a pneumatic switch with indication.
With a total weight of 150 kg and an operating air pressure of 6.5–8 bar, the ZQC600 is both robust and efficient. Optional units include N200/N400 PTO and an external lubricant oil cooler, ensuring adaptability to diverse heavy-duty off-road vehicle requirements.
Advantages of ZQC600 Wheeled Vehicle Transfer Case
With a maximum input torque of 5000Nm and a total weight of 150kg, the ZQC600 is engineered for heavy-duty performance. It delivers reliable power transmission even under extreme conditions, ensuring stable operation for multi-axle drive vehicles.
The integrated lubrication system, with a lubricant oil capacity of 4L, ensures consistent and effective lubrication for all critical components. This reduces wear, extends service life, and maintains optimal performance during prolonged operation.
The interaxle differential supports a torque ratio proportion of 1:1 or 1:2.21, enabling flexible power distribution between axles. This enhances traction and stability, making it ideal for both on-road and off-road driving scenarios.
The 3-pneumatic shifting system, operating at 6.5–8 bar, provides smooth and reliable gear changes between the on-road ratio of 0.95 and the off-road ratio of 2.12. The front axle output is controlled by a pneumatic switch with indication, ensuring precise and intuitive operation.
Technical Specifications
| Max input torque: | 5000 Nm |
| Max input speed: | 4300 rpm |

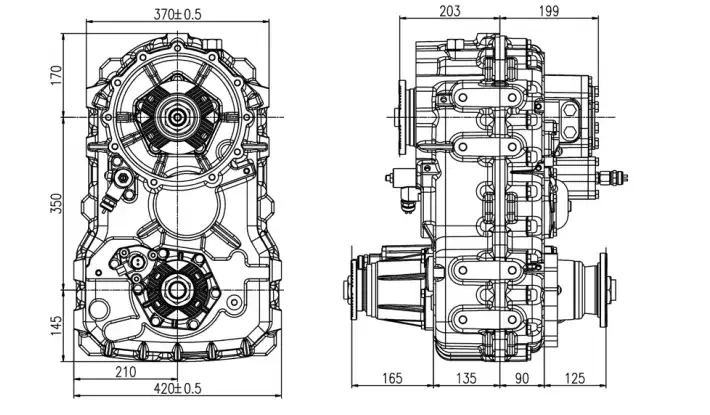

| Center Distance: | 350 mm |
| Ratio (On-road/Off-road): | 0.95/2.12 |
| Shifting Operation: | 3-pneumatic |
| Torque Ratio Proportion: | 1:1 or 1:2.21 |
| Air Pressure: | 6.5-8 bar |
| Lubricant Oil: | 4L |
| Total weight: | 150 Kg |
| Input Flange: | DIN150, DIN165, T150, T165 |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
| Max input torque | Max input speed | Ratio (On-road/Off-road) | Shifting Operation |
| ZQC500 | 5000 Nm | 3500 rpm | 0.91/2.08 | 3-pneumatic |
| ZQC600 | 5000 Nm | 4300 rpm | 0.95/2.12 | 3-pneumatic |
| ZQC800 | 8000 Nm | 3000 rpm | 1/1.5 | 3-pneumatic |
| ZQC1200 | 12000 Nm | 3000 rpm | 1/1.75or1.285 | 3-pneumatic |
| ZQC1600 | 18000 Nm | 2800 rpm | 0.89/1.536 | 3-pneumatic |
| ZQC2000 | 25000 Nm | 2800 rpm | 0.89 or 1/1.536 | 3-pneumatic |
| ZQC2000L | 25000 Nm | 2800 rpm | 0.89 or 1/1.536 | 3-pneumatic |
| ZQC2800 | 32000 Nm | 2800 rpm | 1.11/2.37 or 1.47 | 3-pneumatic |
| ——END—— | ||||
General Information of DuraMac ZQC600 | |||
| Max Input Torque | 5000Nm | Max Input Speed | 4300rpm |
| Center Distance | 350mm | Ratio | on-road(0.95)/off-road(2.12) |
| Shifting Operation | 3-pneumatic | Front Axle Output Operation | Pneu. operation with indication switch |
| Torque Ratio Proportion | 1:1,1:2.21 | Air Pressure | 6.5-8 bar |
| Lubricant Oil | 4L | Total Weight | 150Kg |
| Optional Unit | N200,N400 or full power PTO are optional, External lubricant oil cooler connection is available | Input Flange | DIN150、DIN165、T150、T165 |
| ——END—— | |||
Characteristics of Wheeled Vehicle Transfer Cases | |||
|---|---|---|---|
| High loading capacity | Built-in With lubrication pump | ||
| Developed based on technology transfer from STEYR | Configured with inter-axle differential | ||
| External oil cooler connection available | Pneumatic shifting | ||
| Applicable for military off-road vehicles, desert oilfield vehicles, all terrain cranes and other wheeled vehicles. | |||
| ——END—— | |||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
