DuraMac ZQC2800 Wheeled Vehicle Transfer Case
The ZQC2800 is a heavy-duty transfer case designed for wheeled vehicles, engineered to handle the most demanding operating conditions. It delivers a maximum input torque of 32000Nm and a maximum input speed of 2800rpm, with an input-output center distance of 400mm, ensuring reliable and efficient power transmission.
This unit offers flexible speed ratios: 1.11 for on-road high gear and 2.37 or 1.47 for off-road low gear, selectable via 3-pneumatic shifting. It features front axle output with an indication switch and an inter-axle differential with selectable torque ratio proportions of 1:2.13 or 1:3, optimizing traction and stability across diverse terrains.
With an operating air pressure of 6.5–10 bar, a lubricant oil capacity of 11L, and a total weight of 498kg, it balances robust durability and operational efficiency. An external lubricant oil cooler can be connected as an optional unit, and the input flange is available in T180 (ISO8667) specification.
Advantages of ZQC2800 Wheeled Vehicle Transfer Case
High Loading Capacity:The ZQC2800 transfer case delivers a maximum input torque of 32000Nm and a maximum input speed of 2800rpm, with an input-output center distance of 400mm. This robust design ensures stable and reliable power transmission, making it ideal for heavy-duty wheeled vehicles operating under extreme loads.
Built-in Lubrication Pump: It features a lubricant oil capacity of 11L and supports an optional external lubricant oil cooler. This setup provides efficient heat dissipation and continuous lubrication for internal components, effectively reducing wear, lowering failure rates, and extending the service life of the unit.
Inter-axle Differential: The inter-axle differential offers selectable torque ratio proportions of 1:2.13 or 1:3. This allows for intelligent power distribution between the front and rear axles, significantly improving traction, passability, and driving stability on diverse and challenging terrains.
Pneumatic Shifting: Equipped with 3-pneumatic shifting (operating at 6.5–10 bar) and front axle output operation with an indication switch, the system enables rapid, smooth gear changes. This enhances operational convenience, control, and overall driving safety for the vehicle.
Technical Specifications
| Max input torque: | 32000 Nm |
| Max input speed: | 2800 rpm |

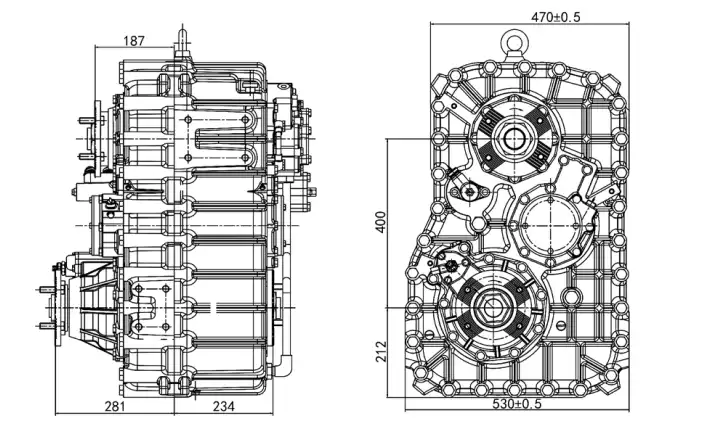

| Center Distance: | 400 mm |
| Ratio (On-road/Off-road): | 1.11/2.37 or 1.47 |
| Shifting Operation: | 3-pneumatic |
| Torque Ratio Proportion: | 1:2.13 or 1:3 |
| Air Pressure: | 6.5~10 bar |
| Lubricant Oil: | 11L |
| Total weight: | 498Kg |
| Input Flange: | T180（ISO8667） |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
| Max input torque | Max input speed | Ratio (On-road/Off-road) | Shifting Operation |
| ZQC500 | 5000 Nm | 3500 rpm | 0.91/2.08 | 3-pneumatic |
| ZQC600 | 5000 Nm | 4300 rpm | 0.95/2.12 | 3-pneumatic |
| ZQC800 | 8000 Nm | 3000 rpm | 1/1.5 | 3-pneumatic |
| ZQC1200 | 12000 Nm | 3000 rpm | 1/1.75or1.285 | 3-pneumatic |
| ZQC1600 | 18000 Nm | 2800 rpm | 0.89/1.536 | 3-pneumatic |
| ZQC2000 | 25000 Nm | 2800 rpm | 0.89 or 1/1.536 | 3-pneumatic |
| ZQC2000L | 25000 Nm | 2800 rpm | 0.89 or 1/1.536 | 3-pneumatic |
| ZQC2800 | 32000 Nm | 2800 rpm | 1.11/2.37 or 1.47 | 3-pneumatic |
| ——END—— | ||||
General Information of DuraMac ZQC2800 | |||
| Max Input Torque | 32000Nm | Max Input Speed | 2800rpm |
| Center Distance | 400mm | Ratio | on-road(1.1)/off-road(2.37or1.47) |
| Shifting Operation | 3-pneumatic | Front Axle Output Operation | Pneu. operation with indication switch |
| Torque Ratio Proportion | 1:2.13or1:3 | Air Pressure | 6.5-10 bar |
| Lubricant Oil | 11L | Total Weight | 498Kg |
| Optional Unit | External lubricant oil cooler can be connected | Input Flange | T180（ISO8667） |
| ——END—— | |||
Characteristics of Wheeled Vehicle Transfer Cases | |||
|---|---|---|---|
| High loading capacity | Built-in With lubrication pump | ||
| Developed based on technology transfer from STEYR | Configured with inter-axle differential | ||
| External oil cooler connection available | Pneumatic shifting | ||
| Applicable for military off-road vehicles, desert oilfield vehicles, all terrain cranes and other wheeled vehicles. | |||
| ——END—— | |||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
